CONTROL VALVES
Control Valves Perfect for Unit Ventilators, VAV Boxes, Chillers & More
At R.A.A, we install HVAC Control Valves and Actuators are designed for use in a wide variety of HVAC – this guarantees fast and easy installation for many applications. Choose from thousands of valve and actuator combinations that are built to deliver dependable, long-lasting and leak-proof performance. Our HVAC Ball Valves range from 1/2 - 20 inches and feature your choice of pneumatic, electric, spring return and non-spring return actuation.
Piping and Control Valves
We install and repair all type of pipe and control valve, allowing the system to work in optimal conditions.
Please call and speak with one of our specialists to discuss that pipe or valve controls will be most appropriate for your application.
Product Categories
-
Threaded Ball Valves and Actuators
-
Threaded Globe Valves and Actuators
-
Zone and Fan Coil Valves
-
Flanged Globe or Ball Valves and Actuators
-
Butterfly Valves and Actuators
-
Pressure-Independent Valves
-
Other Valves and Actuators
-
Valve Sizing
DAMPER ACTUATORS
SPRING RETURN, ELECTRONIC FAIL-SAFE, FIRE& SMOKE AND NON-SPRING RETURN ACTUATORS
Aplications
Energy Valve
Damper actuators are designed for use in a wide variety of HVAC damper applications. For active smoke control systems, Belimo introduced the proportional FSAF24-SR for stairwell, under-floor and other presurization applications. With our comprehensive torque range and the ability to direct mount on standard damper shafts or jackshafts, solutions are available for fire and smoke actuator dampers, control dampers, air handlers, economizer units, VAV terminal units, fan coil units, fan shutters and unit ventilators.
SMOKE CONTROL
Applications

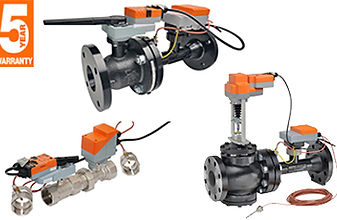

The energy Valve is a two-way pressure independent valve using the Electronic Pressure Independent Valve (ePiv) plataform that measures the coil energy by using an embedded electromagnetic flow sensor, water supply and return temperature sensors. The energy Valve uses a Delta T Manager algorithm that monitors the coil performace and optimizes the available energy of the coil. The energy Valve has standart analog signal and feedback wiring and communicates data to the DDC system via BACnet MS/TP, BACnet and TCP/IP. The actuator stores all the coil performace data such as Delta T and energy usage. All the coil performace data, stored trends and control functions can be sent to and the BAS via the data network.
-Save pump distribution energy by eliminating coil overflow.
-Improve plant performance by improving chiller or boiler efficiency.
-Reduce unwanted chiller or boiler starting by improving plant DT.
-Achive coil performance that follows the calculated design
flow rates exactly.
Pressure Independent Control Valves
Applications

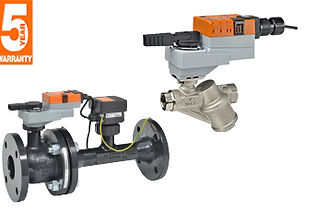

Pressure independent vaves directly control the water flow required by the coil and are not affected by pressure fluctuations in the system. The valves are selected based on the GPM requirements of the coil and no Cv calculations are needed. By precisely controlling the flow ,the pressure independent valves eleminate the need for balancing valves, thus reducing the installation and balancing cost. By far, the biggest benefit for the owner comes in the form of energy savings by eliminating overflow thru the coil. Overflow wastes energy by over pumping and is the main cause of the low Delta T syndrome in chilled water systems.
Pressure independent valves can be used to regulate flow through air handlers, heating and cooling coils, fan coil unit, unit ventilatiors and VAV re-heat coils.
Predictable flow throughout valve travel eliminates over-pumping and provides favorable energy saving.
6 Way Characterized Control Valves
The 6 way characterized control valve is ideal for chilled beams and radiant ceilings offering reduced wiring by using single actuator instead of two. It eliminates the need for a change over valve and enables the use of a single coil for heating and cooling.
Rotary Valves Ball and Zone Valves
Ball Valves:
_Bronze, cast iron and stainless steel ball valves with NPT and flanged connections.
_A Range of fluid temperature rating ideal for chilled and hot water, and steam.
_Fitted with damper type rotary actuators for easy field assembly and installation.
_RPTFE seats allows valve to operate in high temperature applications.
_Full, reduce. and standart port for various flow characteristic.
_Wide range of sizes and Cv for various applications.
Applications
Available with spring return or non-spring return actuators, ball valves offer the solution for aggressive applications. The high close-off capabilities with high quality stainless steel trim allow these valves to be used in low and medium pressure steam applications and applications that operate with a higher media temperature.
Zone Valves:
_Designed to fit in compact areas where On/Off is required.
_Actuator installation is a snap with an easy, one-handed removal or engagement.
_Actuator has a synchronous motor that winds the return spring and moves the valves paddle to he desired position.
_Economical operation allows for low current draw and multiple valves per transformer.
_Enhanced motion gear action reduces motor wear and provides smooth, quiet operation with no water hammer and dependable close off.
Appliccations
For high and commercial applications where higher close-off is required: fin tube casing, fan coils,radiant panels and duct coils. Zone valves control the flow of hot and chilled water through coils and heat exchangers.
GLOBE VALVES
Globe valves are the perfect fit for such applications as unit ventilation and air handling units as well other water/steam control in heating and cooling systems.
BUTTERFLY VALVES
The features and benefits of butterfly valves:
-
Saves energy with up to 80% less power consumption and reduces transformer and wiring cost
-
Self-adjusting design provides zero leakage and improves system performance
-
Industry leading fail-safe function and universal power supply input from 24 to 240 VAC/DC provides application flexibility
-
Unique position indication viewable for easy troubleshooting
-
Near Field Communication (NFC), along with BACnet communication protocol provide superior application data access
Butterfly valve series are available in sizes from 2” to 24” which fulfills the requirement of commercial and institutional HVAC applications requiring zero percent leakage for 2-way and 3-way applications. Ductile iron body and lugged flanges comply with ASME/ANSI Class 125/150 standards and are completely assembled and tested - ready for installation. Typical applications include chiller and boiler isolation, cooling tower isolation, change-over systems, large air handler coil control and low flow bypass to maintain minimum flow to a chiller or boiler plant.
SENSORS
Sensors from Belimo offer superior reliability, easy installation, and seamless integration with major Building Automation Systems (BAS). We offer a complete line of field-level device solutions, including sensors for measuring temperature, humidity, pressure, CO₂, and volatile organic compounds (VOCs) in pipe, duct, and outdoor applications. All of our products are backed by world-class service and support.
The features and benefits of sensors:
-
Innovative universal enclosure allows for reduced inventory and product selection for all applications
-
Unique snap-on cover housing design allows for quick installation, easy commissioning, and provides NEMA 4X / IP65 protection
-
BACnet and Modbus communication protocols provide superior application data access and enables reduced wiring and parameterization
-
Detachable mounting plate designed to be used as a drill template for easy installation
-
Modular conduit fitting enables various mounting and cable configurations for flexible mounting and installation
-
Spring loaded removable terminal block creates a connection that offers resistance to vibration and maximum pull-out force, saving time during wiring and ensuring contact reliability
